End-User Guide - SurveyJS Creator

This page has been prepared as a starting point for documentation aimed at end-users of SurveyJS.

Basic Overview/Quick Start Guide

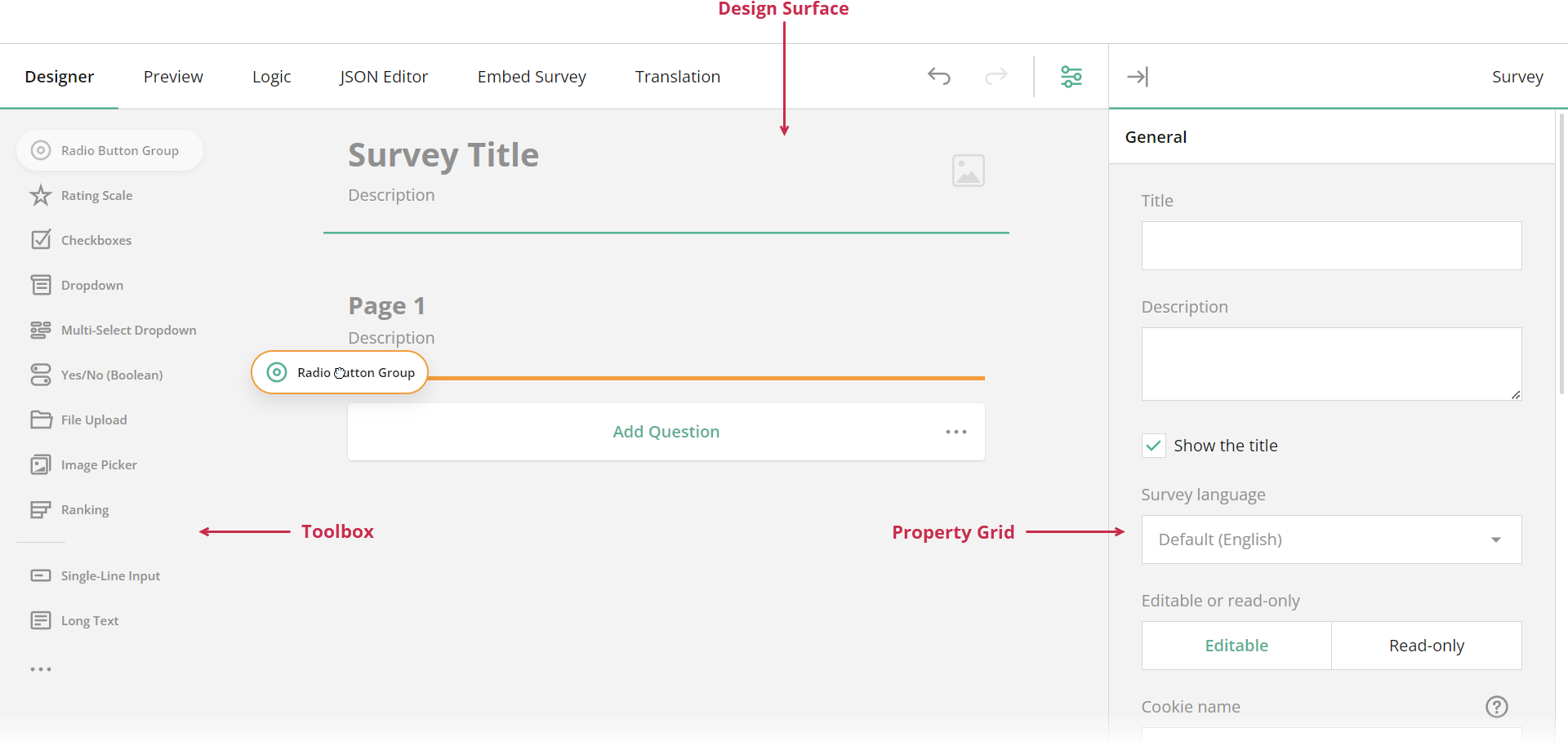

The SurveyJS Survey Creator page contains the survey design area with the Toolbox to the left and the Properties window to the right.

Overview of the SurveyJS Creator interface

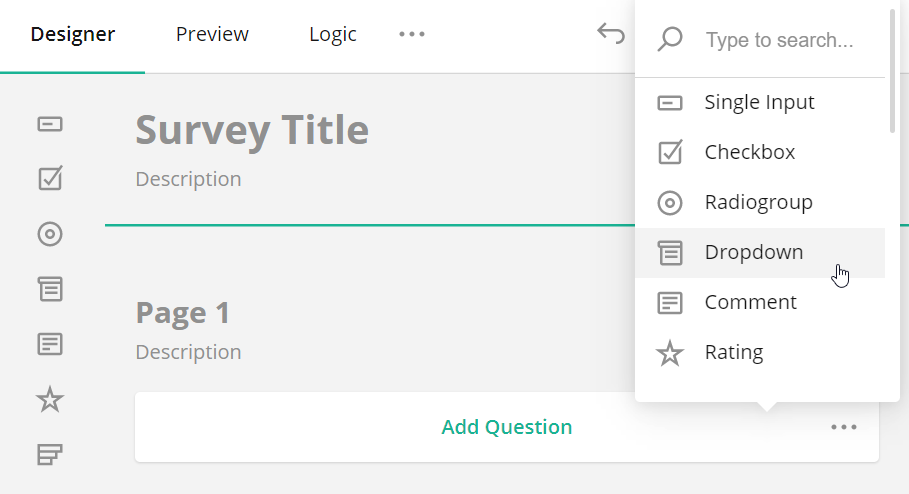

Survey elements (such as questions or panels) can be dragged from the toolbox onto the main design page (questions area). Once these elements are in questions area, they can be modified, edited and reordered to suit the needs of a specific survey. You can add pages to your survey by clicking the drop down menu at the top left of the page.

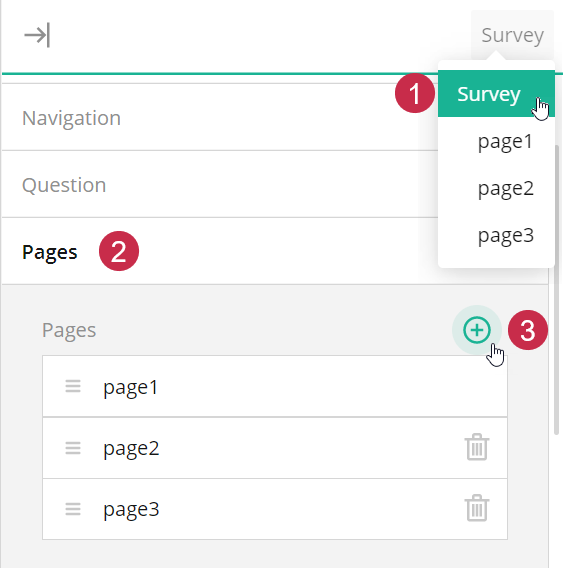

Add survey page drop-down menu

Detailed properties for the overall survey and each individual element can be accessed and edited by clicking the Properties tab to the right of the page. Ordering and reordering of each survey element can be done by dragging the hamburger glyph (three horizontal lines) to the top left of each element.

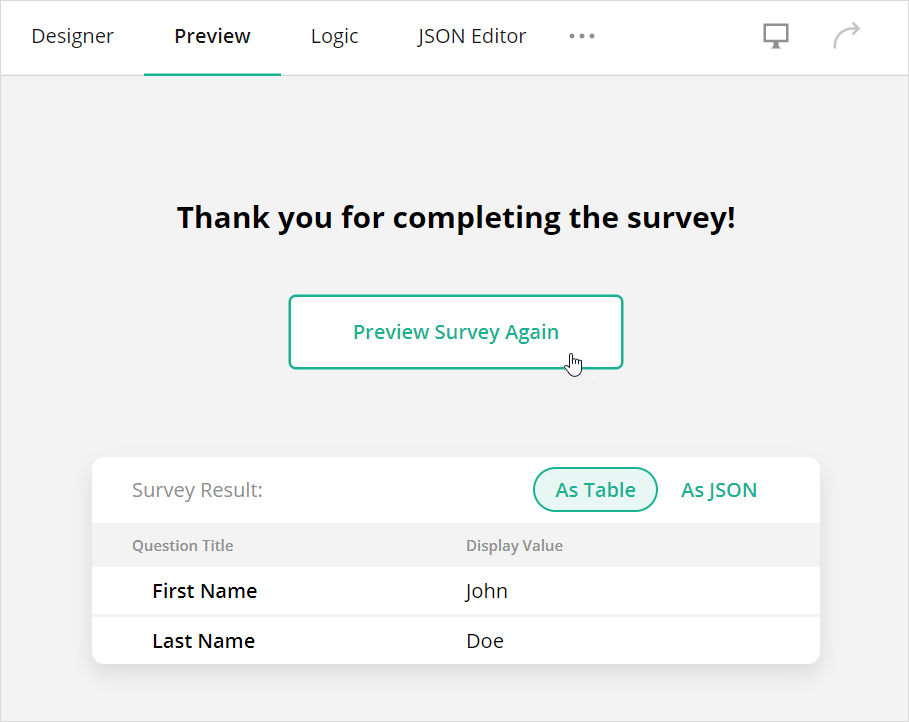

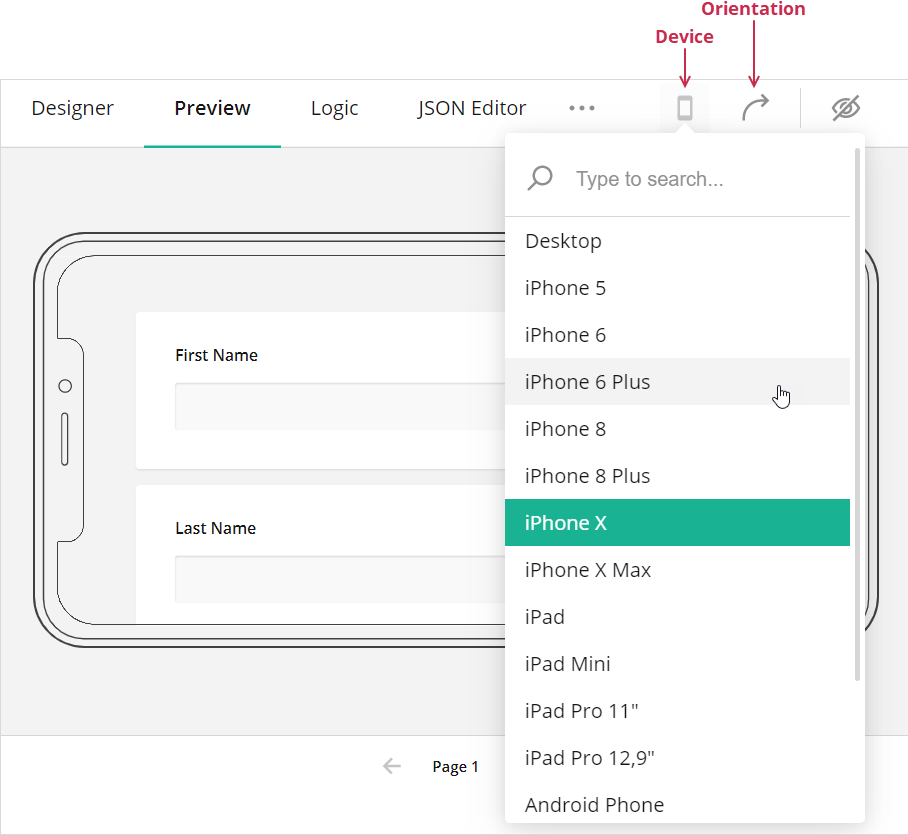

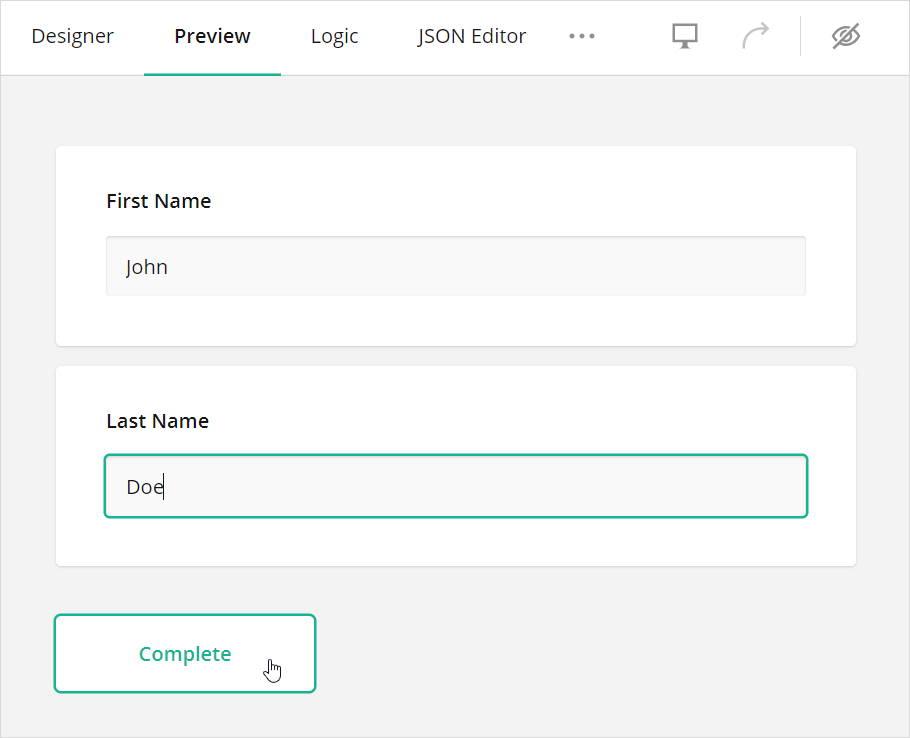

Once you have designed your survey you can test it by clicking the Test Survey link at the top left of the page. There you will be able to choose the target device for your test (for example, if you are going to deliver the survey via iPad, choose iPad from the drop-down list).

Overview of Test Survey Area

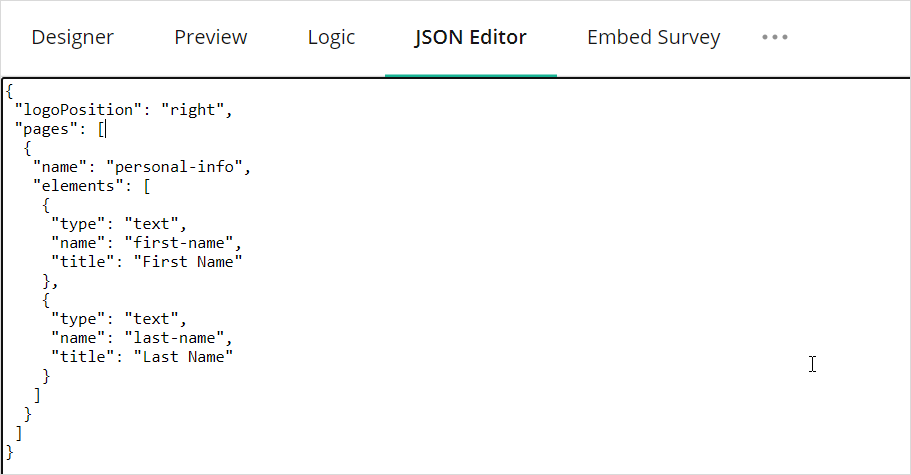

If you need to develop the survey in more detail via the JSON file format, you can access an editor via the JSON Editor link at the top of the page.

Image of JSON viewer/editor

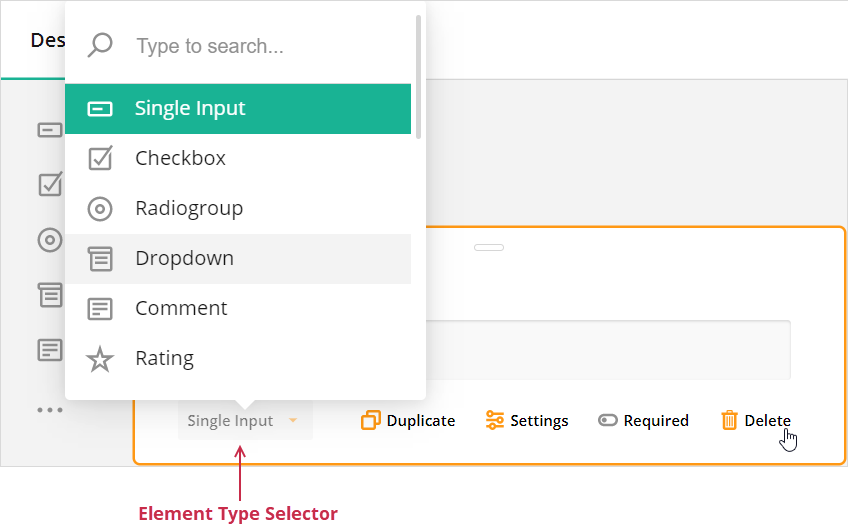

Each toolbox item will have its own configuration panel once it is placed into the Survey Creator. This panel contains a set of adorners. Using adorners, you will be able to move and re-order the item using the hamburger button (three horizontal lines), delete the item using the cross button, toggle the item's visibility using the eye button, duplicate the item, add the item to the toolbox, see the item's mode and edit the items properties. You may also set the item's required status if the tool allows it.

picture of adorner configuration panel

Individual Toolbox Elements

Overview of Toolbox

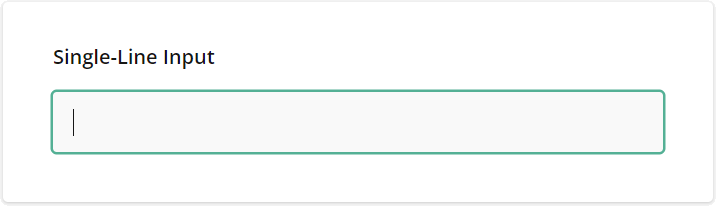

Single Input

Single Input allows you to ask a simple question or request a non-predetermined input from a respondent. A single line is presented to the respondent for text input. There are no limits on the possible input so the respondent may enter any text and any amount of text.

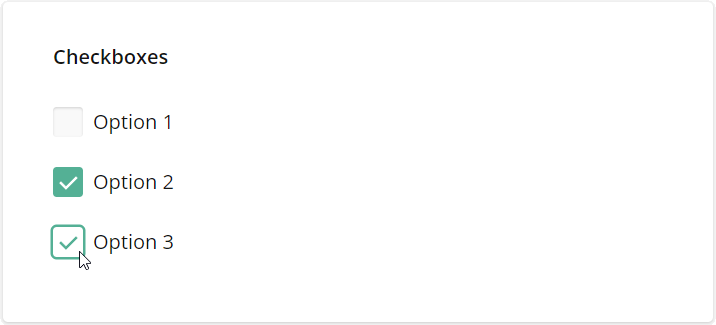

Checkbox allows for multiple questions or items to be asked of a respondent. The Checkbox question presents the survey respondent with a list of items with a checkbox next to each. Ticking the checkbox chooses that item. Multiple items can be checked and only those checked are recorded in the survey.

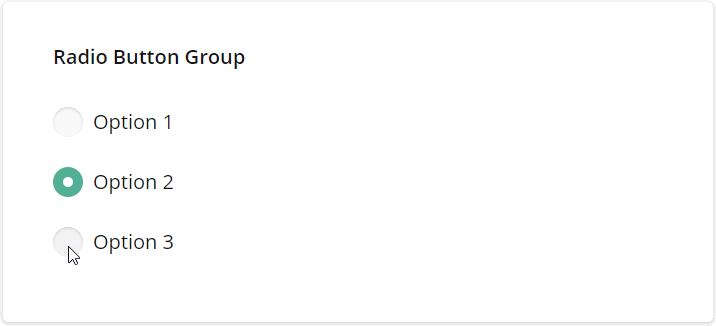

Radiogroup allows for multiple questions or items to be asked of a respondent. The respondent is presented with a list of items with a radio button next to each. Only one item may be selected from this list and only the selected item will be recorded in the survey.

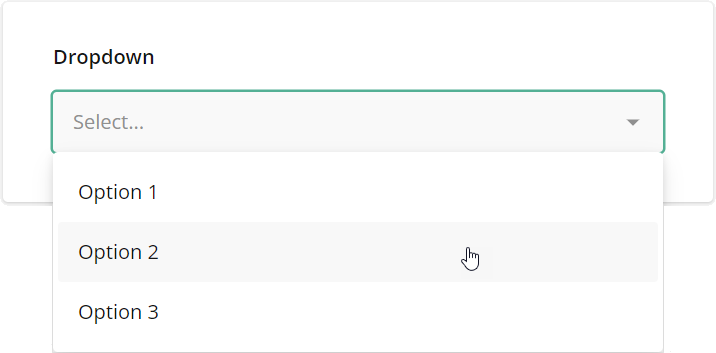

A respondent is presented with a drop-down list of items. Only one of these items can be selected, and only the selected item will be recorded in the survey.

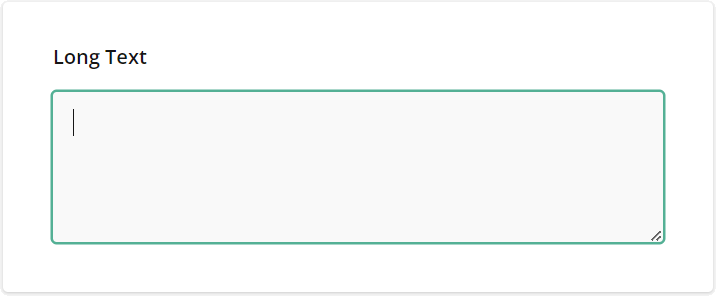

The Comment survey element asks for a non-predetermined input from a respondent. A text box is presented to the respondent. There are no limits on the possible input so the respondent may enter any text and any amount of text.

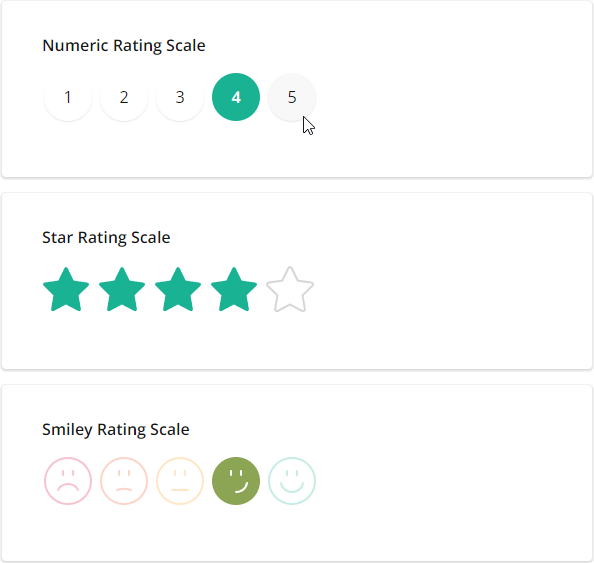

The Rating survey element asks a respondent to choose a number across the range presented. Only one value may be selected and only the selected value will be recorded in the survey.

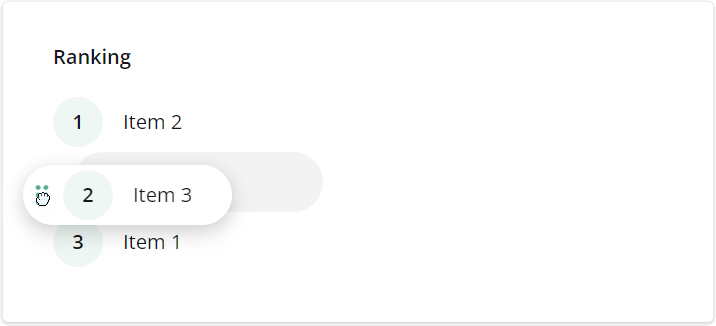

A respondent is presented with a list of items that can be rearranged according to rank or preference. The items are rearranged by dragging the items on the page. The final rank or order of all items is recorded in the survey.

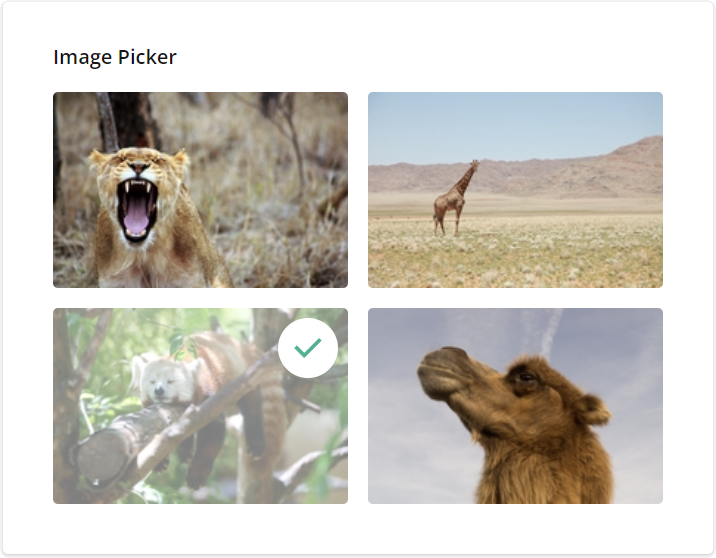

Image picker

The survey respondent is presented with a series of images. One of these images can be selected and only the value associated with that image will be recorded in the survey.

  • To provide a numerical output for this element, enter a numeric value for each image in the Properties > choices > value field.
  • Images can be ascribed different values via Properties > Choices > Value
  • Toggle Properties > General > Multi select to allow the survey respondent to choose more than one image
  • Image sizes can be changed via Properties > General > Image Height/Image Width

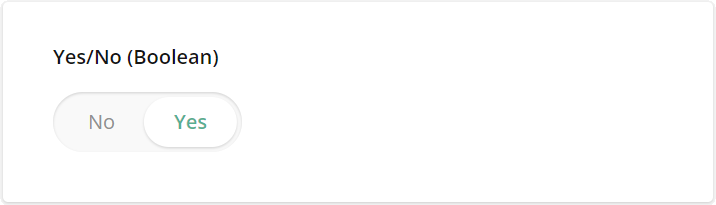

The Boolean survey element presents a respondent with a yes or no answer. The respondent's response will be recorded in the survey as true (yes) or false (no).


The Image survey element allows an image to be uploaded or linked into the survey. There is no associated value in relation to the survey.


The HTML tool enables HTML to be added to the survey allowing for diverse formatting for text, paragraphs and the inclusion of links and images. There is no associated value in relation to the survey.

  • HTML elements allow the use of the HTML programming language within the survey to add images, files for download, text with HTML formatting among other things. They can be used in conjunction with other questions, and included in panel elements. HTML is a powerful feature and can be used in conjunction with other elements to address many text formatting questions.
  • There may be security issues with HTML add ons, especially if they link to external sites
  • HTML has a name field but not a title. It does not need to announce itself to the respondent, however because it has a name it can be called within the conditional logic of the survey.
  • The HTML field is for the presentation of text and other information directly to the respondent therefore it should not require its own description field.
  • actions within the HTML field (such as clicking links and downloading files) may not be recorded and tracked directly within the survey. However due to the powerful natue of HTML alternative tracking could be applied. The security of any external tracking would need to be considered.

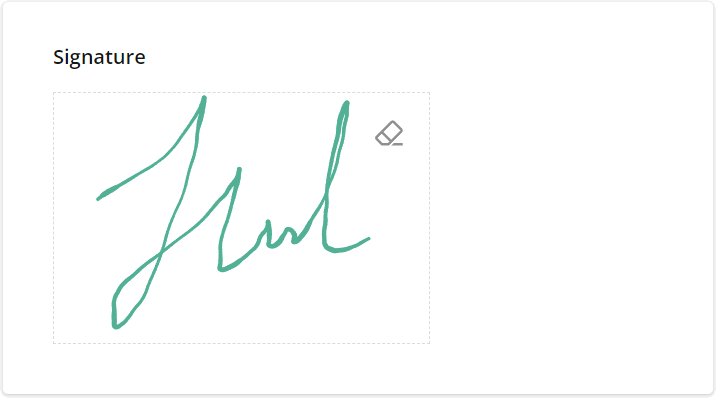

Signature Pad

The Signature Pad survey element allows respondent input to be directly drawn on screen in a pre-set box or area. This is typically used to obtain a signature from the respondent, however it could be used to obtain any hand-drawn input. The size of the box presented to the respondent may be changed by clicking on the Properties tab. The color of the pen and background can also be changed. The input from the respondent is recorded in the survey in the following file formats: JPEG, PNG or SVG. This file format may be changed in the Properties tab.

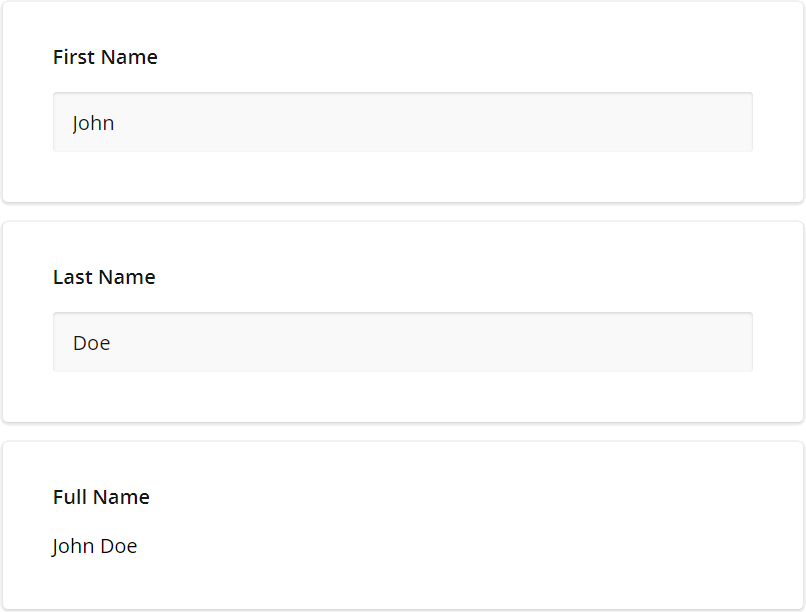

The Expression survey element allows for data and calculations to be presented to a respondent. For example, this element provides functionality for adding up the scores of previous question responses, showing the current date and time for the respondent. Configuration is available via the Properties tab; click General then edit the Expression text box. Examples are given:

  • +
  • (*)*(100 - )
  • today()
  • age()
  • min()
  • max()
  • count()
  • avg()
  • iif()

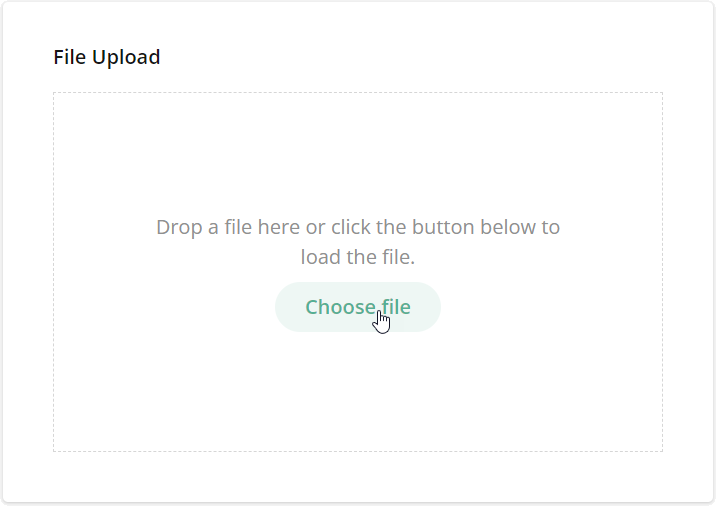

The File survey element presents a button to a respondent requesting that a file is uploaded. When the respondent presses the Choose File button, an upload file dialogue will launch within a web browser. Many details can be specified via the Properties tab such as maximum file size, multiple uploads, accepted file formats as well as preview area. The file(s) uploaded via the File element will be recorded/retained in the survey. File formats are restricted by a comma-separated list of file extensions including periods e.g.: .jpg,.pdf,.png. The uploaded file is recorded in the survey. For security, it is important that you strictly specify the file formats that are allowed to be uploaded into the survey.

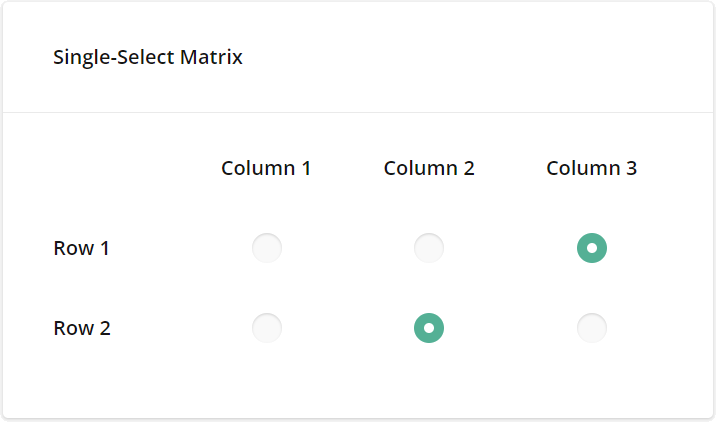

Matrix (Single Choice)

The Matrix (Single Choice) tool allows for an array of radio buttons to be presented to the survey respondent in rows and columns. The amount of rows and columns can be adjusted, however only one item per row can be selcted. Names of rows and columns can be edited via the properties tab: Click Columns and then Fast Entry to type these in. The order that rows are presented to the respondent can be set to random or initial (the latter will sort rows aphabetically by the first letter). Only radio buttons that have been selected will be recorded in the survey.

  • Properties > Rows > Text controls what the user sees
  • Properties > Rows > Value controls what is made available as data and within the conditional logic of the survey

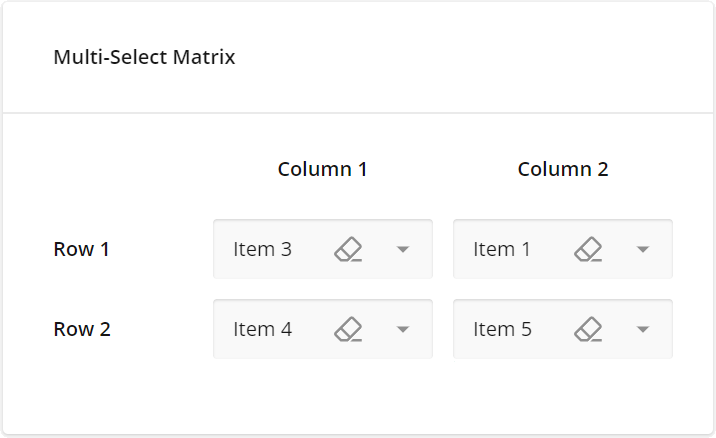

Matrix (Multiple Choice)

The Matrix (Multiple Choice) survey element presents a survey respondent with an array of columns and rows. Each cell of the array can be configured with a list of selectable items. These selectable items can be presented to the respondent through the following cell types:

  • Dropdown
  • Checkbox
  • Radiogroup
  • Single Input
  • Comment
  • Boolean
  • Expression
  • Rating

(Please see above for descriptions of these types of interaction) Cell type can be changed via the Properties tab. The amount of columns and rows, the title of rows and the value of the selectable item can also be edited via the Properties tab. Click Rows and Fast Entry to name each row. Click Choices and Fast Entry to edit the item/value. To hide the name of each column, click Layout and uncheck Show Header. Click Data to set the Default Value for each cell and a Correct Answer if desired. The respondent makes a selection and this is recorded in the survey according to three values: Row, Column and Item/value. Only those selected are recorded in the survey.

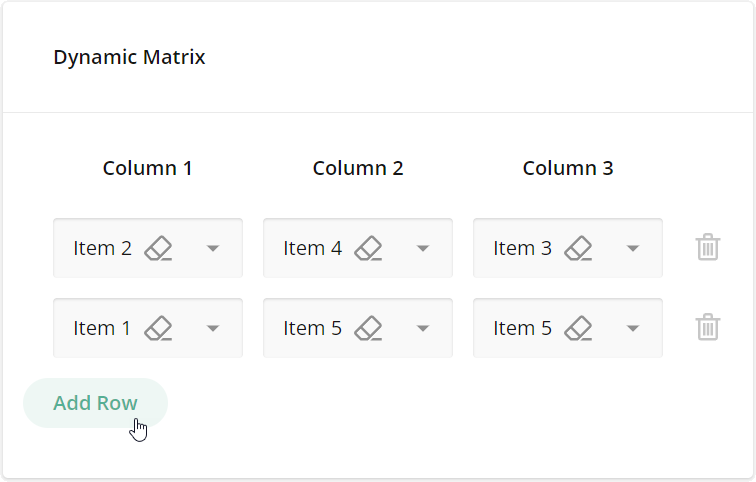

Matrix (Dynamic Rows)

The Matrix (Dynamic Rows) survey element contains the same functionality as the Matrix (Multiple Choice) element above, but adds a dynamic element that is controlled by a survey respondent. Respondents can add or remove rows according to their needs. Please see the overview for the Matrix (Multiple Choice) element above for more detail about configuring this element.

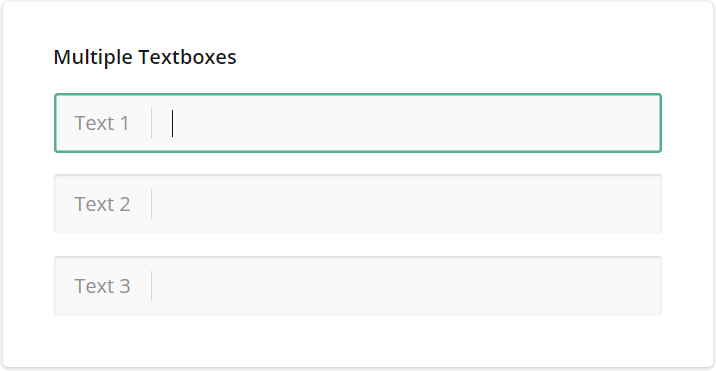

Multiple Text

The Multiple Text survey element allows for a respondent to input multiple single line inputs. See 'Single Input' above for a basic description. Multiple Text presents a stacked series of Single Input entries. The Properties tab allows for configuration of the default value of each field (is the text field empty or does it have pre-filled text?), the amount of columns used to display the text fields as well as the overall amount of text fields/items. Only the entries that have input from the respondent are recorded in the survey.


The Panel survey element serves as a box or container that can include multiple questions and sub-panels.

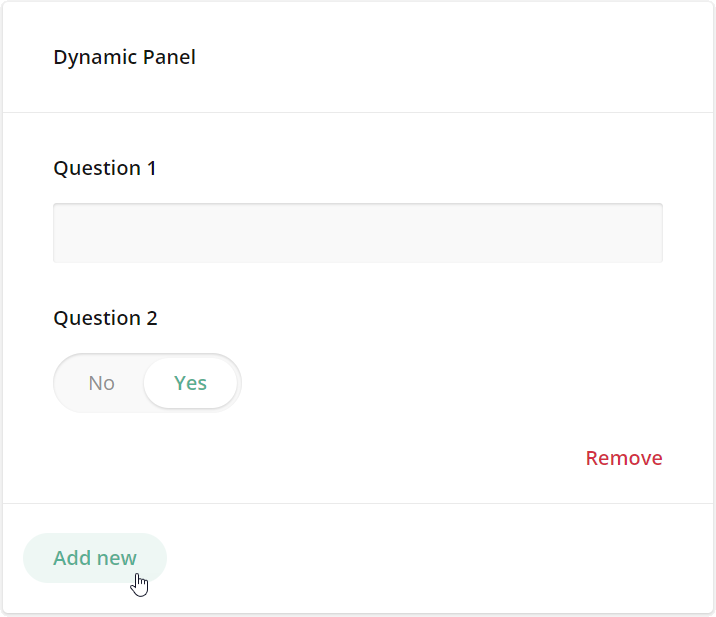

Panel (Dynamic Panels)

The Panel (Dynamic Panels) tool allows you to create a template box or container element that can include multiple questions and input types. This template is activated when the survey respondent actively clicks Add New in the survey. The respondent can activate any number of these templates by repeatedly clicking Add New.

Hiding Question Number and Title in survey

The Question Number and Title can be hidden in the survey output. Properties > layout > Hide number removes the number at the start of the question while retaining your title. You can also remove the whole number and title with Properties > Layout > Title location and set it to Hidden. This can be useful if you are planning on using an HTML element to ask the question or otherwise direct the survey respondent.

Formatting text within the survey

Presenting text within the survey can be partially acheived using the Title and Description fields of each Element. These fields are an easy and direct way to add questions and direction to the survey respondent. While this is easy and direct, there are limitations to using these fields. For instance, the Description field of an Element does not allow formatting such as italics or bold. These limitations can be overcome by using an HTML element to provide the necessary textual material for your survey.

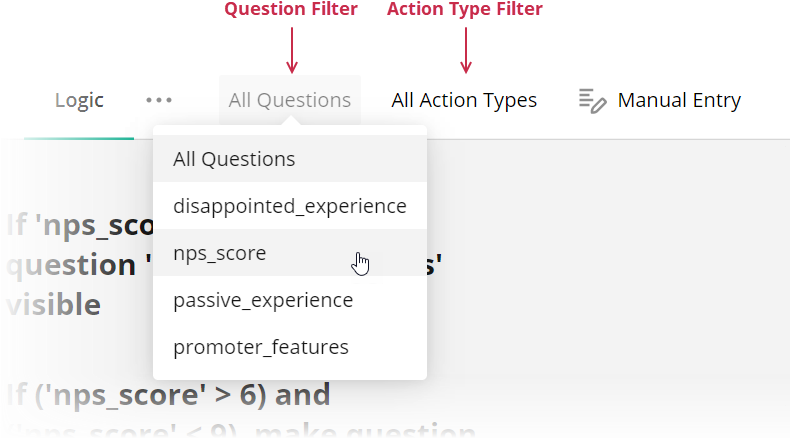

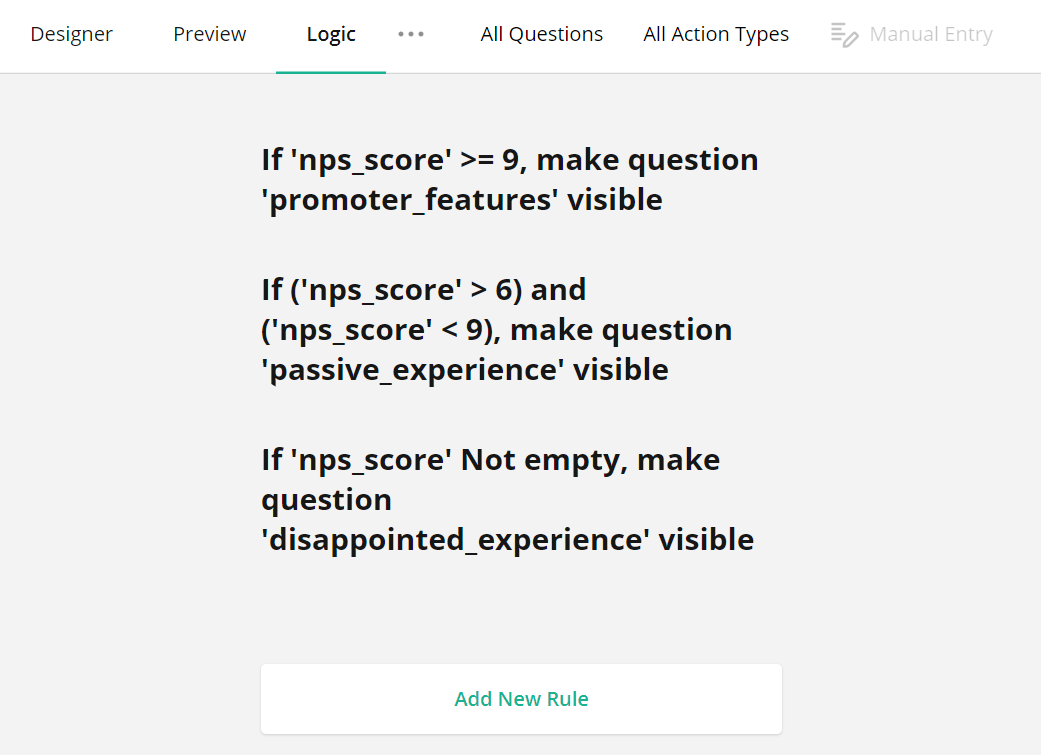

Conditional Logic

Every survey element can be triggered by any question within the survey. This allows the visibility or availability of each element to be conditional on the responses made elsewhere in the survey. For example, Conditional Logic would allow for a Matrix to appear if a Boolean question was answered Yes, and an Image Picker to appear if the same Boolean was answered No. Using Logic within your survey makes it dynamic and responsive, and enables you to create separate pathways throughout the survey as a whole.

To define the logic for each element, go to Properties > Logic.

Image of Logic dropdown within Properties section

  • Visible if controls whether the element is made Visible via Logic Expressions. If these Expressions are defined, then the element will remain invisible within the survey unless the conditions of the expression are met.
  • Enable if controls whether the element is Enabled via Logic Expressions. The element will be visible, but the responses will disabled until the conditions of the expression are met.
  • Required if controls whether the element's Required state is determined through Logic Expressions. If an element is required, then it becomes compulsory and the survey cannot proceed or be completed unless that element has recorded a response (Required status can also be determined manually by toggling Properties > General > Is required).

Naming an element for use in an Expression

When you add a survey element you are able to give it both a Title and a Name in the Properties > General section. Understanding the difference between Title and Name is important when developing the Logic of your survey. In short, Name refers to the question as a logical entity that can be refered to within the Conditional Logic of the survey without confusion. Title refers to text that is directed to the survey respondent and it may be unsuitable for use within the terse structure of the survey's logic. An example of a Name might be Q1vegetables while the corresponding Title might be Please select your favourites from the following vegetables. It is clear that the purpose of the Title is to direct the survey user, while the Name refers to the question within the Logic of the survey.

  • If there is no Title given, the Name will be used instead.
  • Both Title and Name can be hidden in the survey by setting Properties > Layout > Title location to Hidden. This might be useful if you plan on providing a question to the survey user using the HTML element, for example.

Image comparing Title and Name properties Image comparing Title and Name properties

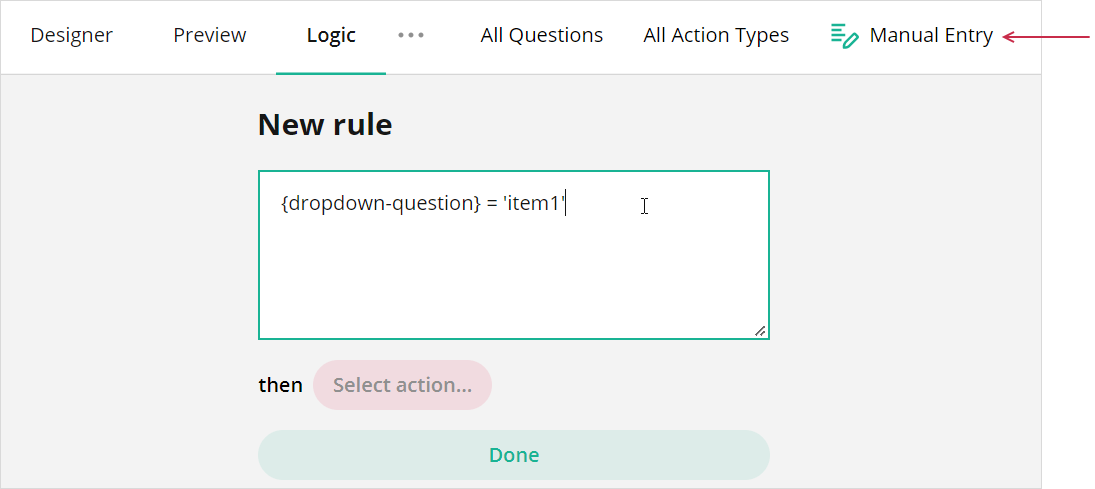

Building a Logic Expression

Image of the Logic Properties menu

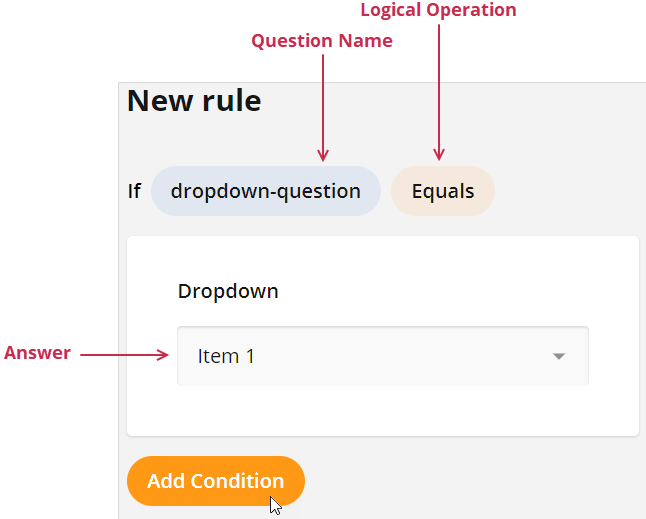

To build the Expression for an element, go to Properties > Logic and choose how you would like to trigger the element (for example, choose Visible if if you would like the element to remain invisible until the conditions of the expresion are met). When you select Visible if, you will be directed to Select question.... This will open a drop-down dialogue that lists all available questions in the survey. The dialogue will list these by Name.

Select the question you would like to use within the Expression. Once selected, you will be able to select the Operator you would like to apply to your chosen question. Operators could be:

  • is empty
  • is not empty
  • equals
  • not equals
  • contains
  • not contains
  • any of
  • all of
  • greater
  • less
  • greater or equals
  • less or equals

Depending on the type of question you have chosen, only some of these Operators may be available and others will be grayed out.

Once you have chosen the question and the Operator, you will be able to select the state that the question must have in order to meet the requirements of the Expression. For example, in the following image Q2 is the question, equals is the Operator and the state of item1 as Selected fulfils the requirements of the Expression:

Image of the Logic Properties menu

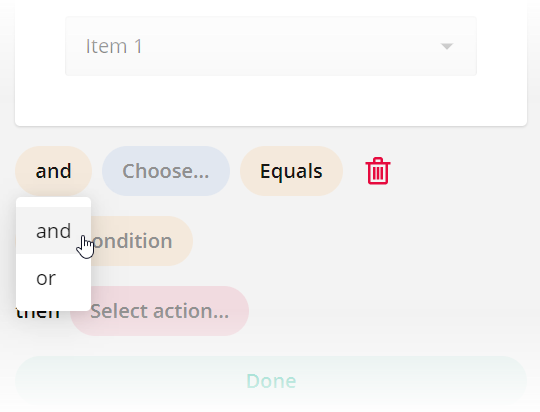

You can also add more than one condition for your expression to meet in order to be valid. Press Add condition to develop the Expression further. Multiple conditions can be set and their interrelation is based on the logical Operators And and Or:

  • And determines that the second Expression must also be valid in order for the whole Expression to be met. In this example, we are using an expression to determine if an element is Visible. Choosing the And Operator means that the element will not be visible unless the conditions of both expressions are met.
  • Or determines that the second Expression is an alternative to the first: either the details of the first Expression fulfil the conditions to make the element Visible, or the details of the second Expression can also fulfil the conditions of the Logic.

Image of the Logic Properties menu

Specific use cases of Conditional logic

In general, Conditional Logic will be the same across all survey elements. However there are some interesting and specific use cases.

Logic within a Matrix element

Conditional logic can be set within a Matrix element on a column-row basis. This means that you can set columns to Visible or Enabled by setting an Expression condition within the same row. This allows each row to have it's own conditional logic.

The Logic of each specific column is set by editing the column details. Each column can be edited via Properties > Columns > Edit, and within this there is a Logic section specific to that column.

Image of the Column > Edit properties

Once you click Edit for a specific column, you will be shown a configuration section for that column:

Image of the Column > Edit properties detail

  • The Visiblity or Availability of the column can be determined by a single question anywhere within the survey, including the Matrix the column belongs to.
  • The column can also be made Available or Visible relative to a question within the same row of the Matrix. For example if you have a Matrix with four columns and you would like the Visibility of columns 2-4 to be triggered by a Boolean in column 1, you will need to set the Logic of columns 2, 3 and 4 to be Visible if row.<columnname> equals true.
  • The question row.<columnname> refers to the row that is relative to the question, then the Name that you have given the column. In this instance, row means 'in the current row'
  • It would be necessary to apply this Logic to all columns you would like to be affected by the trigger.

The end-result of setting logic within a Matrix can be seen in the following images.

First, the survey only shows the Boolean questions from column one:

Image of the survey output of internal Matrix Logic

Second, the Boolean from Column 1/Row 1 is set to yes/true, which makes columns 2-4 Visible. Notice how this only applies to Row 1.

Image of the survey output of internal Matrix Logic

Third, the Boolean from Column 1/Row 2 is set to yes/true, which makes columns 2-4 Visible in Row 2 as well as Row 1. Note that Columns 2-4 in Row 3 are still not Visible.

Image of the survey output of internal Matrix Logic
