Add a Survey to a Knockout Application

This step-by-step tutorial will help you get started with the SurveyJS Library in a Knockout application. To add a survey to your Knockout application, follow the steps below:

As a result, you will create a survey displayed below:

See the Pen SurveyJS - Add a Survey to a Knockout Application by RomanTsukanov (@romantsukanov) on CodePen.

You can find the full code in the following GitHub repository: Get Started with SurveyJS - Knockout.

Link SurveyJS Resources

The SurveyJS Library for Knockout consists of two parts: survey-core (platform-independent code) and survey-knockout-ui (view models). Each part includes scripts and style sheets that implement the Modern and Default V2 themes illustrated below:

Themes in SurveyJS Library

Insert links to the scripts and style sheets within the <head> tag on your HTML page after the Knockout link:

<head>
    <!-- ... -->
    <script type="text/javascript" src="https://unpkg.com/knockout/build/output/knockout-latest.js"></script>

    <!-- Modern theme -->
    <link href="https://unpkg.com/survey-core/modern.min.css" type="text/css" rel="stylesheet">

    <!-- Default V2 theme -->
    <!-- <link href="https://unpkg.com/survey-core/defaultV2.min.css" type="text/css" rel="stylesheet"> -->

    <script type="text/javascript" src="https://unpkg.com/survey-core/survey.core.min.js"></script>
    <script type="text/javascript" src="https://unpkg.com/survey-knockout-ui/survey-knockout-ui.min.js"></script>
    <!-- ... -->
</head>

To apply the linked theme, call the applyTheme(themeName) method. Depending on the theme, pass "modern" or "defaultV2" as the method's argument. For instance, the following code applies the Modern theme:

Survey.StylesManager.applyTheme("modern");

Create a Model

A model describes the layout and contents of your survey. The simplest survey model contains one or several questions without layout modifications.

Models are specified by model definitions (JSON objects). For example, the following model definition declares two textual questions, each with a title and a name. Titles are displayed on screen. Names are used to identify the questions in code.

const surveyJson = {
    elements: [{
        name: "FirstName",
        title: "Enter your first name:",
        type: "text"
    }, {
        name: "LastName",
        title: "Enter your last name:",
        type: "text"
    }]
};

To instantiate a model, pass the model definition to the Survey.Model constructor as shown in the code below. The model instance will be later used to render the survey.

const survey = new Survey.Model(surveyJson);
View full code
<!DOCTYPE html>
<html>
<head>
    <title>My First Survey</title>
    <meta charset="utf-8">
    <script type="text/javascript" src="https://unpkg.com/knockout/build/output/knockout-latest.js"></script>

    <!-- Modern theme -->
    <link href="https://unpkg.com/survey-core/modern.min.css" type="text/css" rel="stylesheet">

    <!-- Default V2 theme -->
    <!-- <link href="https://unpkg.com/survey-core/defaultV2.min.css" type="text/css" rel="stylesheet"> -->

    <script type="text/javascript" src="https://unpkg.com/survey-core/survey.core.min.js"></script>
    <script type="text/javascript" src="https://unpkg.com/survey-knockout-ui/survey-knockout-ui.min.js"></script>
    <script type="text/javascript" src="index.js"></script>
</head>
<body>
</body>
</html>
Survey
    .StylesManager
    .applyTheme("modern");

const surveyJson = {
    elements: [{
        name: "FirstName",
        title: "Enter your first name:",
        type: "text"
    }, {
        name: "LastName",
        title: "Enter your last name:",
        type: "text"
    }]
};

const survey = new Survey.Model(surveyJson);

Render the Survey

A survey should be rendered in a page element. Add this element to your page:

<body>
    <div id="surveyContainer"></div>
</body>

To render a survey in the page element, call the render(containerId) method on the model instance you created in the previous step:

document.addEventListener("DOMContentLoaded", function() {
    survey.render("surveyContainer");
});

If you replicate the code correctly, you should see the following survey:

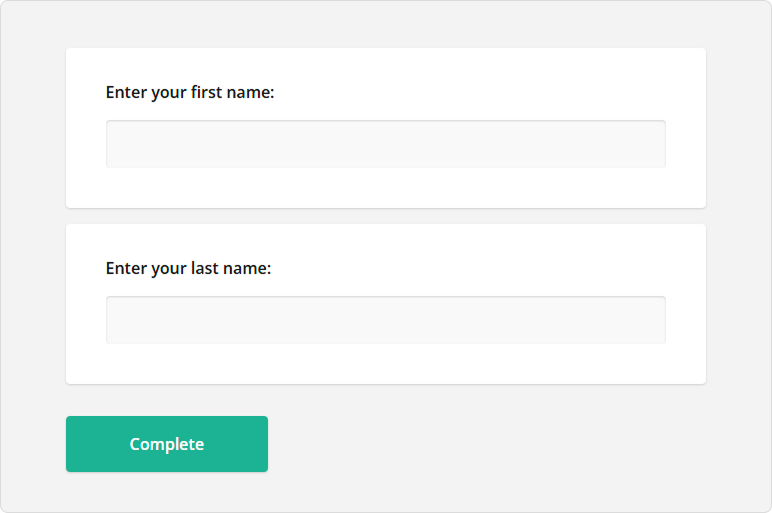

Get Started with SurveyJS - Primitive Survey

View full code
<!DOCTYPE html>
<html>
<head>
    <title>My First Survey</title>
    <meta charset="utf-8">
    <script type="text/javascript" src="https://unpkg.com/knockout/build/output/knockout-latest.js"></script>

    <!-- Modern theme -->
    <link href="https://unpkg.com/survey-core/modern.min.css" type="text/css" rel="stylesheet">

    <!-- Default V2 theme -->
    <!-- <link href="https://unpkg.com/survey-core/defaultV2.min.css" type="text/css" rel="stylesheet"> -->

    <script type="text/javascript" src="https://unpkg.com/survey-core/survey.core.min.js"></script>
    <script type="text/javascript" src="https://unpkg.com/survey-knockout-ui/survey-knockout-ui.min.js"></script>
    <script type="text/javascript" src="index.js"></script>
</head>
<body>
    <div id="surveyContainer"></div>
</body>
</html>
Survey
    .StylesManager
    .applyTheme("modern");

const surveyJson = {
    elements: [{
        name: "FirstName",
        title: "Enter your first name:",
        type: "text"
    }, {
        name: "LastName",
        title: "Enter your last name:",
        type: "text"
    }]
};

const survey = new Survey.Model(surveyJson);

document.addEventListener("DOMContentLoaded", function() {
    survey.render("surveyContainer");
});

Handle Survey Completion

After a respondent completes a survey, the results are available within the onComplete event handler. In real-world applications, you should send the results to a server where they will be stored in a database and processed:

const SURVEY_ID = 1;

function surveyComplete (sender) {
    saveSurveyResults(
        "https://your-web-service.com/" + SURVEY_ID,
        sender.data
    )
}

function saveSurveyResults(url, json) {
    const request = new XMLHttpRequest();
    request.open('POST', url);
    request.setRequestHeader('Content-Type', 'application/json;charset=UTF-8');
    request.addEventListener('load', () => {
        // Handle "load"
    });
    request.addEventListener('error', () => {
        // Handle "error"
    });
    request.send(JSON.stringify(json));
}

const survey = new Survey.Model(surveyJson);

survey.onComplete.add(surveyComplete);

In this tutorial, the results are simply output in an alert dialog:

function alertResults (sender) {
    const results = JSON.stringify(sender.data);
    alert(results);
}

const survey = new Survey.Model(surveyJson);

survey.onComplete.add(alertResults);

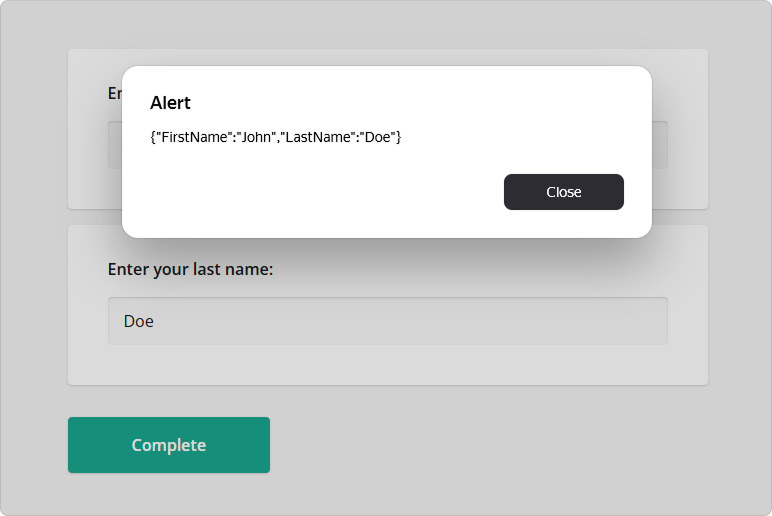

Get Started with SurveyJS - Survey Results

As you can see, survey results are saved in a JSON object. Its properties correspond to the name property values of your questions in the model definition.

View full code
<!DOCTYPE html>
<html>
<head>
    <title>My First Survey</title>
    <meta charset="utf-8">
    <script type="text/javascript" src="https://unpkg.com/knockout/build/output/knockout-latest.js"></script>

    <!-- Modern theme -->
    <link href="https://unpkg.com/survey-core/modern.min.css" type="text/css" rel="stylesheet">

    <!-- Default V2 theme -->
    <!-- <link href="https://unpkg.com/survey-core/defaultV2.min.css" type="text/css" rel="stylesheet"> -->

    <script type="text/javascript" src="https://unpkg.com/survey-core/survey.core.min.js"></script>
    <script type="text/javascript" src="https://unpkg.com/survey-knockout-ui/survey-knockout-ui.min.js"></script>
    <script type="text/javascript" src="index.js"></script>
</head>
<body>
    <div id="surveyContainer"></div>
</body>
</html>
Survey
    .StylesManager
    .applyTheme("modern");

const surveyJson = {
    elements: [{
        name: "FirstName",
        title: "Enter your first name:",
        type: "text"
    }, {
        name: "LastName",
        title: "Enter your last name:",
        type: "text"
    }]
};

const survey = new Survey.Model(surveyJson);

function alertResults (sender) {
    const results = JSON.stringify(sender.data);
    alert(results);
}

survey.onComplete.add(alertResults);

document.addEventListener("DOMContentLoaded", function() {
    survey.render("surveyContainer");
});

View full code on GitHub
